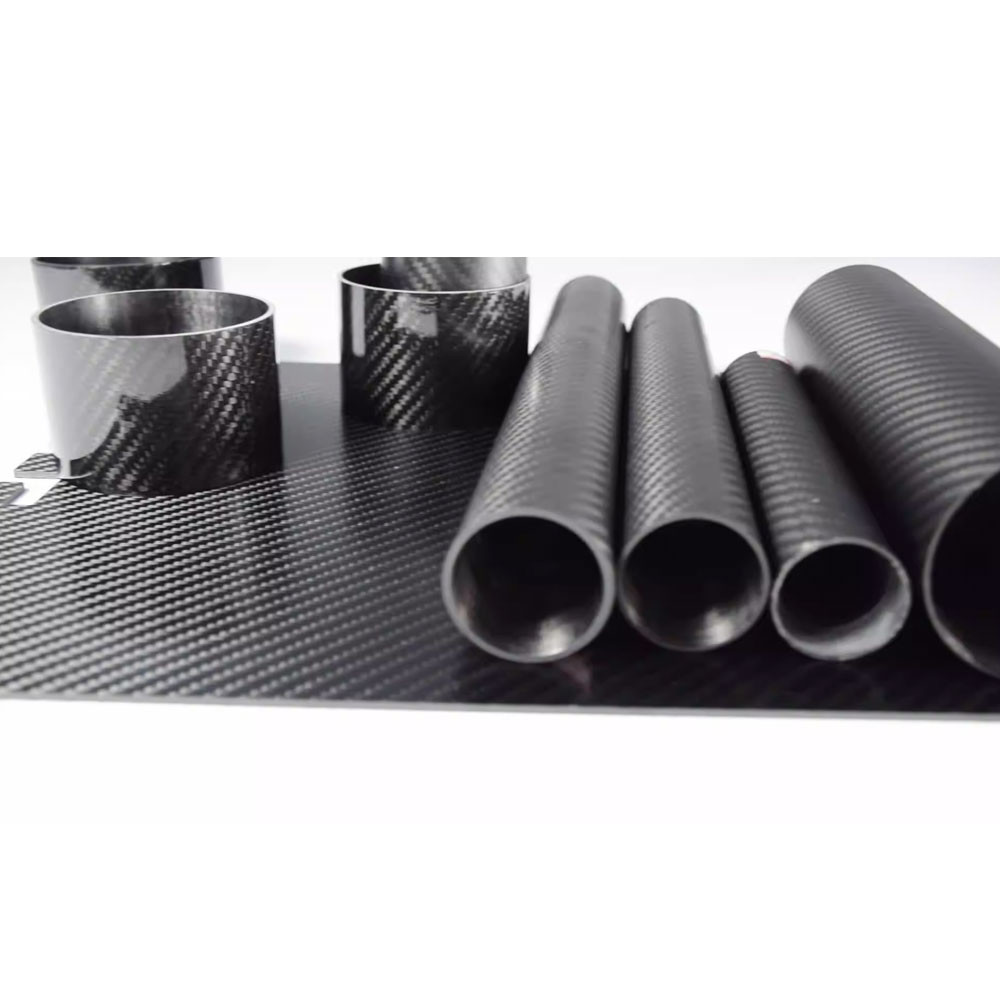

High-Performance Ultra-Strong, Lightweight Carbon Fibre Composites Tube
Carbon fibre composites, also called carbon or CFC, have extreme strength & stiffness, low density, and a unique design. Our carbon tubes are made from a variety of carbon fabrics. Depending on the type of fabric used and its combination, the properties of the tubes can be selectively affected and ultimately determine the appearance and mechanical properties.
The tube consists of several layers of unidirectional fabric, which is applied in different orientations and then covered with a 3K-Plain as a visible layer. The tubes have a significantly higher bending stiffness than conventional steel tubes and are also approximately. 30% lighter. The original tube clamps can still be used, but the knurled screws of the tube clamps must be replaced by longer ones (we recommend a M8x35 AllenScrew, is not included), so that the tube with 2mm wall thickness can be fixed neatly. All necessary holes are CNC milled and already machined into the tube. The surface finish consists of a very thin layer of clear varnish (matt).
Advantages of Carbon Fiber Tubes
- Lightweight and Strong: One of the most notable advantages of carbon fiber tubes is their lightweight nature combined with incredible strength. These tubes offer strength comparable to metals like steel but are significantly lighter, which makes them ideal for applications where weight reduction is crucial.
- High Stiffness and Rigidity: Carbon fiber tubes provide superior stiffness and rigidity. This property makes them perfect for applications requiring high stability, as they maintain shape even under stress. Carbon fiber prepreg tubes, which are pre-impregnated with resin, deliver precise stiffness and are used in high-performance applications, such as aerospace and sports equipment.
- Corrosion Resistance: Unlike metals, carbon fiber tubes resist corrosion, making them suitable for use in environments prone to chemical exposure or moisture. For example, carbon fiber pipes in chemical industries and marine environments outperform metallic counterparts by withstanding corrosive elements.
- Thermal Stability: Carbon fiber tubes exhibit stable thermal performance, meaning they remain functional across a wide temperature range. This property benefits applications in the aerospace and automotive industries where extreme temperatures are common.
- Low Thermal Expansion: The low thermal expansion of carbon fiber tubes reduces the likelihood of shape distortion when exposed to temperature changes. This characteristic is particularly advantageous in applications where high precision is required, such as in telescopic devices and robotics.
| Material | Carbon Fiber Tube |
| Shape | Round |
| Technology | Roll-wrapped or pultrusion |
| Dimension | The existing inner diameter of the mold is 4mm-50mm with a length of 1m. |
| Customizable size: The maximum diameter can be 200mm, the longest can be 3m. |
| Surface | Black glossy/matte surface/painted |
| Glossy 3k weave/matte 3k weave |
| Color metal wire weave |
| Feature | Lightweight, high-strength |
| Working Temperature | Usually, -30-120 degrees, if special requirement, please let us know. |
| Place Of Origin | China |
| Function | Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products |
| Tolerance | Diameter Tolerance: +/-0.1mm |
| Length Tolerance | +/-1mm |
CNC machining is precision and cost-effective way to achieve innovation and creativity, which triggers out our endless imagination and creative inspiration. We had made so many different carbon CNC parts for racing parts, RC helicopters, bicycle bracket, and reinforcements for mor than 10 years.
Usually, these structural components include a wide range of processes such as printing logo, cutting edges, cutout, drilling holes on the solid sheet or tubes. All the machining parts are controlled by our CNC technicians, and both tolerance and surface quality are strictly inspected by the quality inspection department before shipping the goods. Integrated CNC machining enables us to help our customers produce parts efficiently.
Our Service:
1. It ensures a year of quality assurance and 24-hour online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature techniques.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
