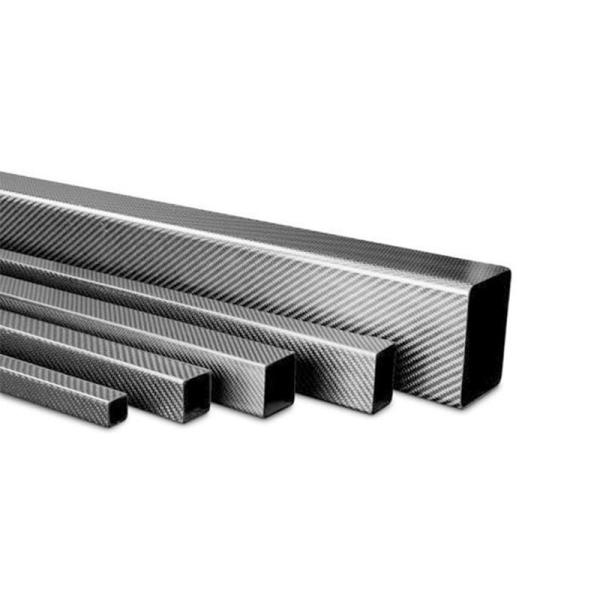

Standard Modulus Durable 100% Real 3K Rectangular Carbon Fiber Tube
Rectangular Carbon Fiber Tube Description:
Rectangular carbon fiber rod. Manufactured from continuous carbon fibers in an vinylester base. These rods are extremely stiff and lightweight and have a very low coefficient of expansion, making them ideal for use as push rods; wing joiner rods on the glider and slope soarer aircraft; reinforcement bars in light weight constructions such as model cars, musical instruments, trade show presentations, etc. The rectangular cross-section of the bar allows it to be installed in the wing vertically, offering tremendous resistance to wing bending loads.
Carbon fiber rods and tubes are manufactured by pulling or wrapping carbon fibers and epoxy resin to a desired diameter/cross-section to form a densely reinforced carbon composite. Great selection of Rectangular and Round Carbon Fiber Rods.
Our pultruded Carbon Fiber Solid Rectangular Rods are manufactured with the fibers running in a 0-degree direction which creates a stiff, lightweight rod with incredible linear strength.
Our Carbon Fiber Solid Rectangular Rods are manufactured by a pulling continuous carbon fibers combined with a resin matrix through a heated steel forming die. This process is referred to as pultrusion and is used for producing continuous lengths of composite materials with constant cross-sections.
As the carbon fibers are saturated with the resin mixture and then pulled through a rectangular die, the hardening of the resin is initiated by the heat from the die and a rigid, cured structure is formed in the shape and size of the die. The majority of the fibers are running in the 0 degree direction, along the length of the tube, to produce an extremely stiff and lightweight rod with a very low coefficient of expansion. This type of construction offers a high stiffness to weight ratio rod with incredible linear strength, due to the orientation of the carbon fibers, and tight outer diameter (OD) tolerances.
Our Carbon Fiber Solid Rectangular Rods have a matte finish surface and are easily bonadable.
Features:
1. Made of high modulus 100% carbon fiber with epoxy resin.
2. Great replacement for the low-grade aluminum wing tubes.
3. Weighs only 1/5 of steel and 5 times stronger than steel.
4. Low Coefficiency Of Thermal Expansion, High-Temperature Resistance.
5. Good Tenacity, Good Toughness, Low Coefficiency Of Thermal Expansion.
Uses Include:
- Aerospace Spars & Beams
- UAV Housing Components
- Frames & Supports
- Structural Components
- Interior Design
- Automation Equipment
- Recreational Equipment
- Instrument Neck Reinforcement
| Product Name | Rectangular Carbon Fiber Tube |
| Material | 100% Carbon Fiber |
| Color | Black or custom |
| Surface | Matt/Glossy |
| Size | Custom thickness and length |
| Fiber Specifications | 1K/3K/12K |
| Weaving Style | Plain/Twill |
| Fiber Type | 1.Carbon fiber+carbon fiber
2.Carbon fiber+ glass fiber
3.Carbon fiber+aramid fiber |
| Application | 1. Aerospace, RC model parts Helicopters Model
2. Manufacture fixtures and tooling
3. Industrial automation and robotics
4. Sports equipment
5. Musical instruments
6. Scientific apparatus
7. Medical device
8. Others |
| Our Product | Carbon fiber tube, carbon fiber plate, carbon fiber profiles. |
